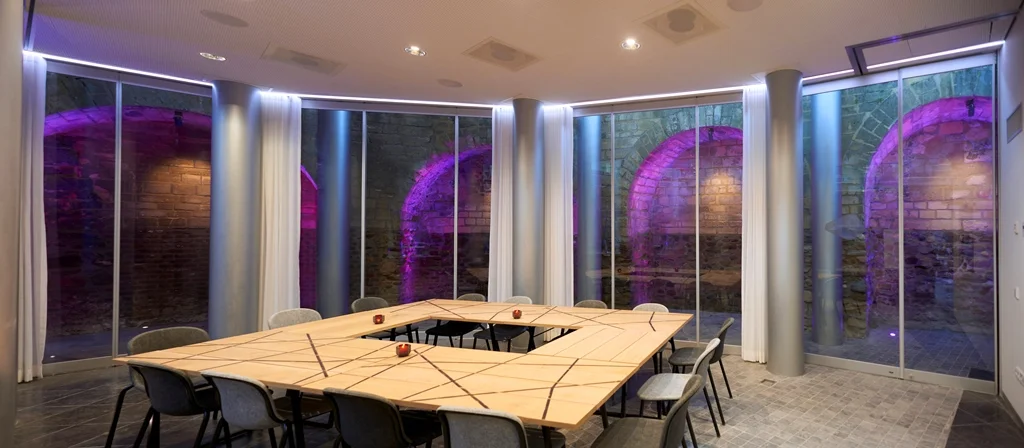

The Type GG Plus system offers the clearest possible unbroken vision in a sliding partition, ideal for situations where space needs to be divided into inviting, viewable rooms, such as shop fronts, showrooms, waiting areas, church halls and other areas that do not necessarily require sound reduction properties. The GG Plus is a framed glass partition with the added benefit of a narrow vertical magnetic frame.
The all glass top hung individual panels can be moved manually without the need for floor tracks. All panels are locked to each other and/or the floor offering security and stability.
|Height||Up to 4,000mm|
|Panel Width||Upto 1,200mm|
|Sound Reduction||Non acoustic
London Wall systems offer the highest level of acoustic ratings available. Sound reduction is achieved using dense cladding, adding internal insulation materials within the panels and by using deep seated mechanically operated retractable seals set to a high sealing pressure applied by worm screw drive and deep interlocking vertical seals.
Special panel surface finishes can help maintain or improve the acoustic qualities of existing sound conditions. Panel faces can vary from acoustically absorbent slotted boards to improve sound absorption levels of a room to the use of soft fabrics to control levels of noise reverberation. Our walls are constantly being developed and confirmed by recognised testing authorities to achieve higher acoustic levels and greater client satisfaction.
Walls are measured in accordance with DIN EN 20 140-3. Please contact our technical department for any assistance required and further information.
|Panel Thickness||32mm rail/10-12mm toughened glass|
|Suspension method||Twin point suspension|
|Panel Type||Indivudual panel|
|Seal Type||Optional sweep strips|
|Panel Construction||Top, bottom and side rails only|
|Panel Weight||Max 40kg/m2|
|Pass Door Panels||Full height pivoting and single or double inset|
|Stacking Options||Z or K track, twin point roller|
|Panel Edges||Slim vertical magnetic profile|
|Frame Finsihes||SAA, stainless steel or powder coated to an RAL colour|
|Other Options||Faceted layout, single or double pass doors|
