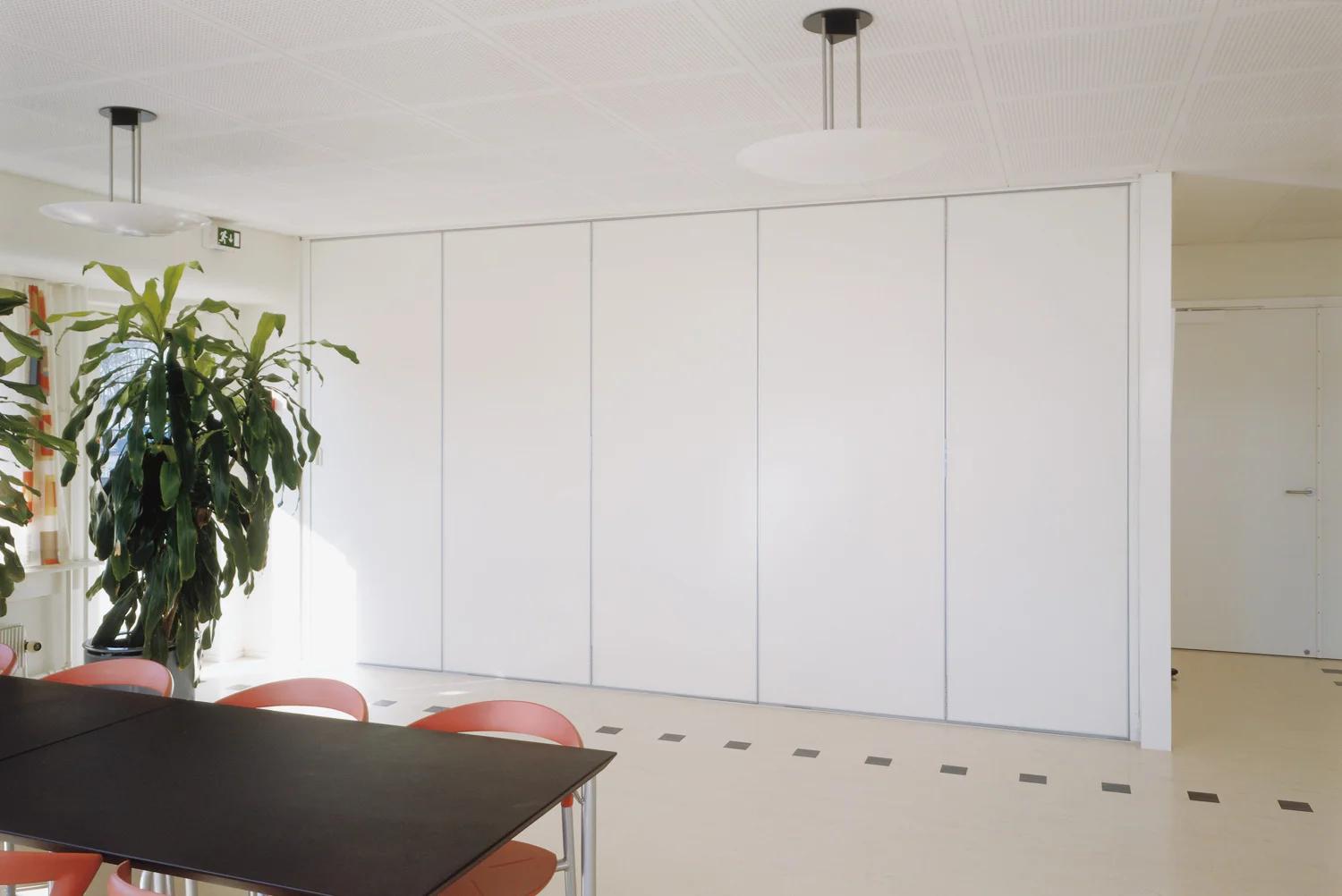

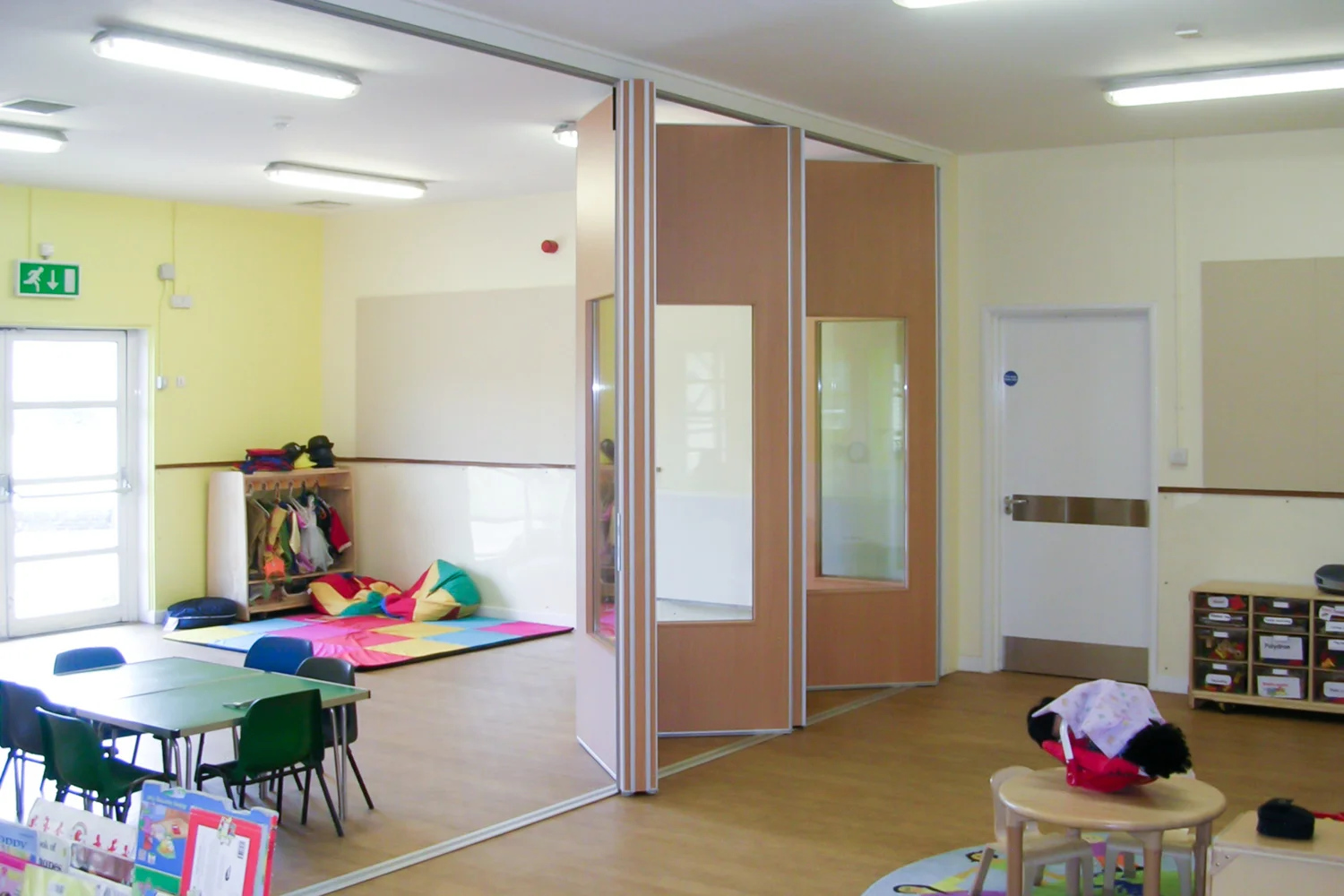

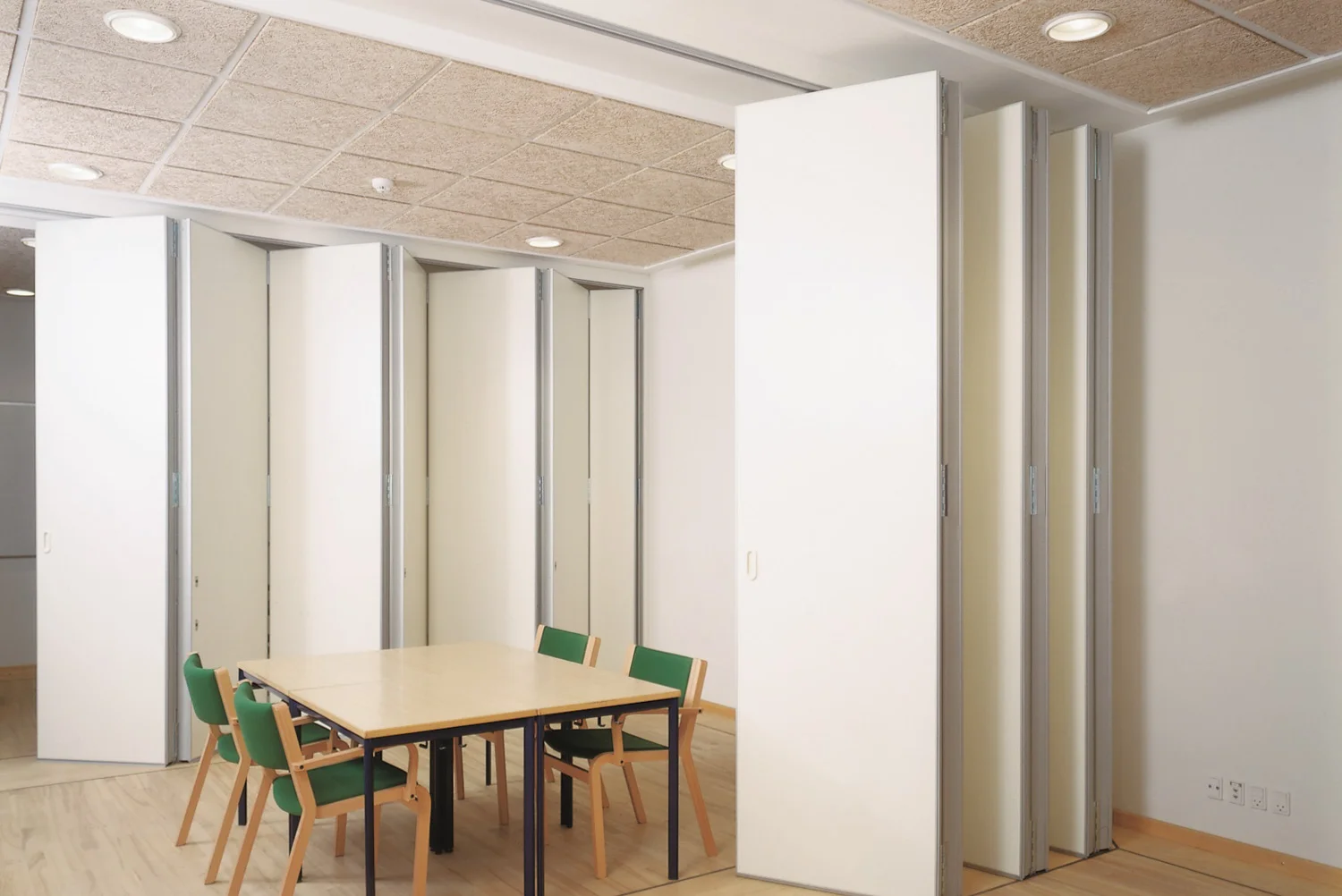

London Wall Type 200 is a sliding folding partition system of purpose made flat panels hinged together, to slide and fold to one or both sides within an alternative opening. Available primarily as a floor supported bottom roller system or as a top hung alternative option.

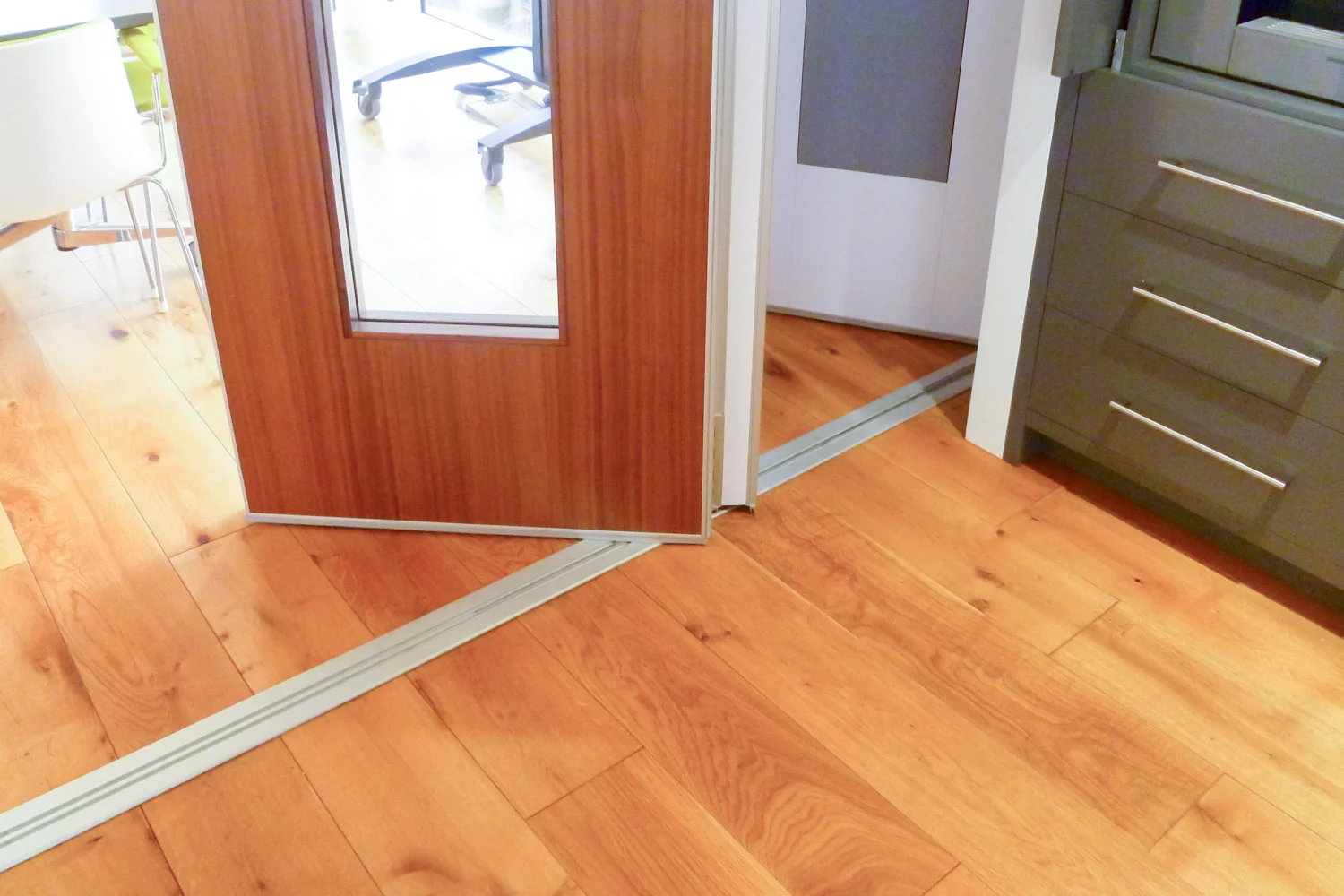

Panels have extra stability by means of a locking arrangement. Each alternate panel contains an espagnolette bolt mechanism operated via a detachable handle at a convenient height from the floor. The locking pin engages the floor rail and top track to ensure the panels close flat, flush and are rigid. The leading panel in the opening can be used as a full height pass door if required. Pass doors have flush pull handles and roller catch fitted; a lock can also be fitted.
|Height||Up to 6,000mm|
|Panel Width||Up to 900mm|
|Sound Reduction||Up to Rw 52dB
London Wall systems offer the highest level of acoustic ratings available. Sound reduction is achieved using dense cladding, adding internal insulation materials within the panels and by using deep seated mechanically operated retractable seals set to a high sealing pressure applied by worm screw drive and deep interlocking vertical seals.
Special panel surface finishes can help maintain or improve the acoustic qualities of existing sound conditions. Panel faces can vary from acoustically absorbent slotted boards to improve sound absorption levels of a room to the use of soft fabrics to control levels of noise reverberation. Our walls are constantly being developed and confirmed by recognised testing authorities to achieve higher acoustic levels and greater client satisfaction.
Walls are measured in accordance with DIN EN 20 140-3. Please contact our technical department for any assistance required and further information.
All technical drawings are subject to change.
