London Wall Type 80 system is a top hung movable acoustic wall of lighter construction made up of individual panels designed to give economical but strong and long lasting use in the division of space requiring flexibility and offers good levels of sound reduction and high quality finish.

Type 80 is ideal for use in meeting rooms, classrooms, church halls and offices. Panels can be finished in priming sheet for client decoration, standard factory finish in standard laminate or spray paint, textile coverings, full range of veneers and laminates or to suit clients requirements.



Up to 6,000mm

Panel Width

Upto 1,250mm (wider on request)

Sound Reduction

Up to Rw 53dB (laboratory tested)

London Wall systems offer the highest level of acoustic ratings available. Sound reduction is achieved using dense cladding, adding internal insulation materials within the panels and by using deep seated mechanically operated retractable seals set to a high sealing pressure applied by worm screw drive and deep interlocking vertical seals.

Special panel surface finishes can help maintain or improve the acoustic qualities of existing sound conditions. Panel faces can vary from acoustically absorbent slotted boards to improve sound absorption levels of a room to the use of soft fabrics to control levels of noise reverberation. Our walls are constantly being developed and confirmed by recognised testing authorities to achieve higher acoustic levels and greater client satisfaction.

Walls are measured in accordance with DIN EN 20 140-3. Please contact our technical department for any assistance required and further information.

Panel Thickness


Suspension Method

Top hung, no floor track

Operation Mode


Panel Type

Individual panel

Seal Type


Panel Construction

Aluminium frame

Panel Weight

Up to 56kg/m2

Fireproof Qualities

• Class 1
• Class 0
• F30
• F60

Copies of our test performance certificates are available upon request.

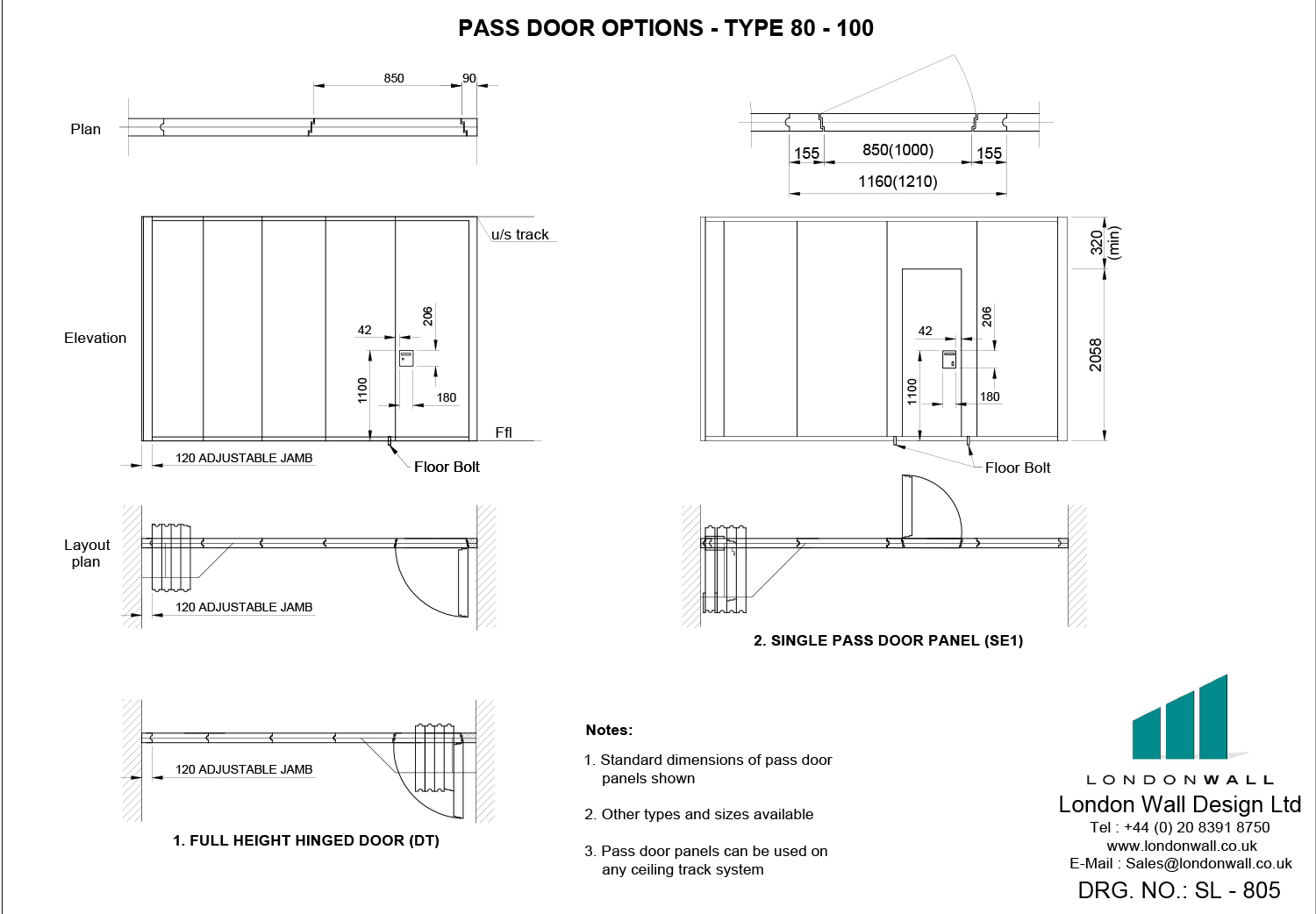

Pass Door Panels

• Full Height
• Single Inset



Panel Edges

Exposed or concealed, SAA or powder coated

Panel Finishes

• Laminate
• HP Laminate
• Veneer
• Fabric
• Steel
• Whiteboard
• Magnetic whiteboard

Other Options

• Curved
• Glazed cut outs

NBS Specification
Stacking Options

‘Z’ Track

‘EE’ Junction Panel with ‘K’ & ‘E’ Track

‘E’ Track

Double ‘K’ Track
DT Pass Door on ‘E’ Track

Inset Pass Door on ‘K’ Track

Offset ‘K’ Track
Remote ‘K’ Track
