Overview

Split Baton hanging methodology for wall panels. Our slatted timber acoustic systems can complement a wide range of room types. They are beneficial both acoustically and aesthetically. For ceilings, wall panelling & balustrades etc.

Sport England preferred colours available through our Laminate range or with a Painted RAL finish, available up to class C performance with 50mm build-out.

Fire resistant core boards with capping and skirting available.

Perforated panels are manufactured in a range perforation patterns to create a level of open surface area to enable the absorption of sound.

Birch plywood or CPL/HPL Laminates and painted
finishes available on FR MDF core.

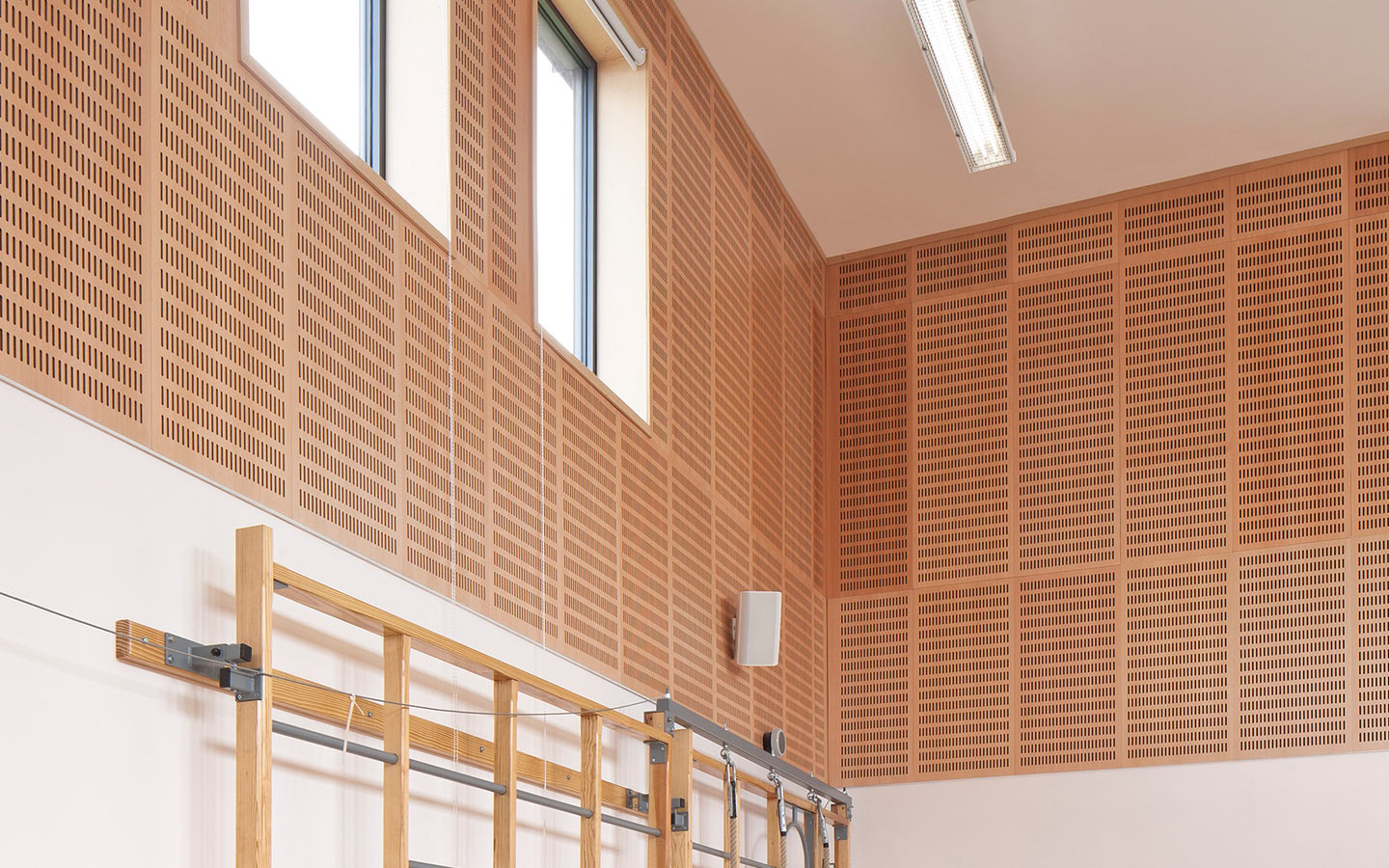

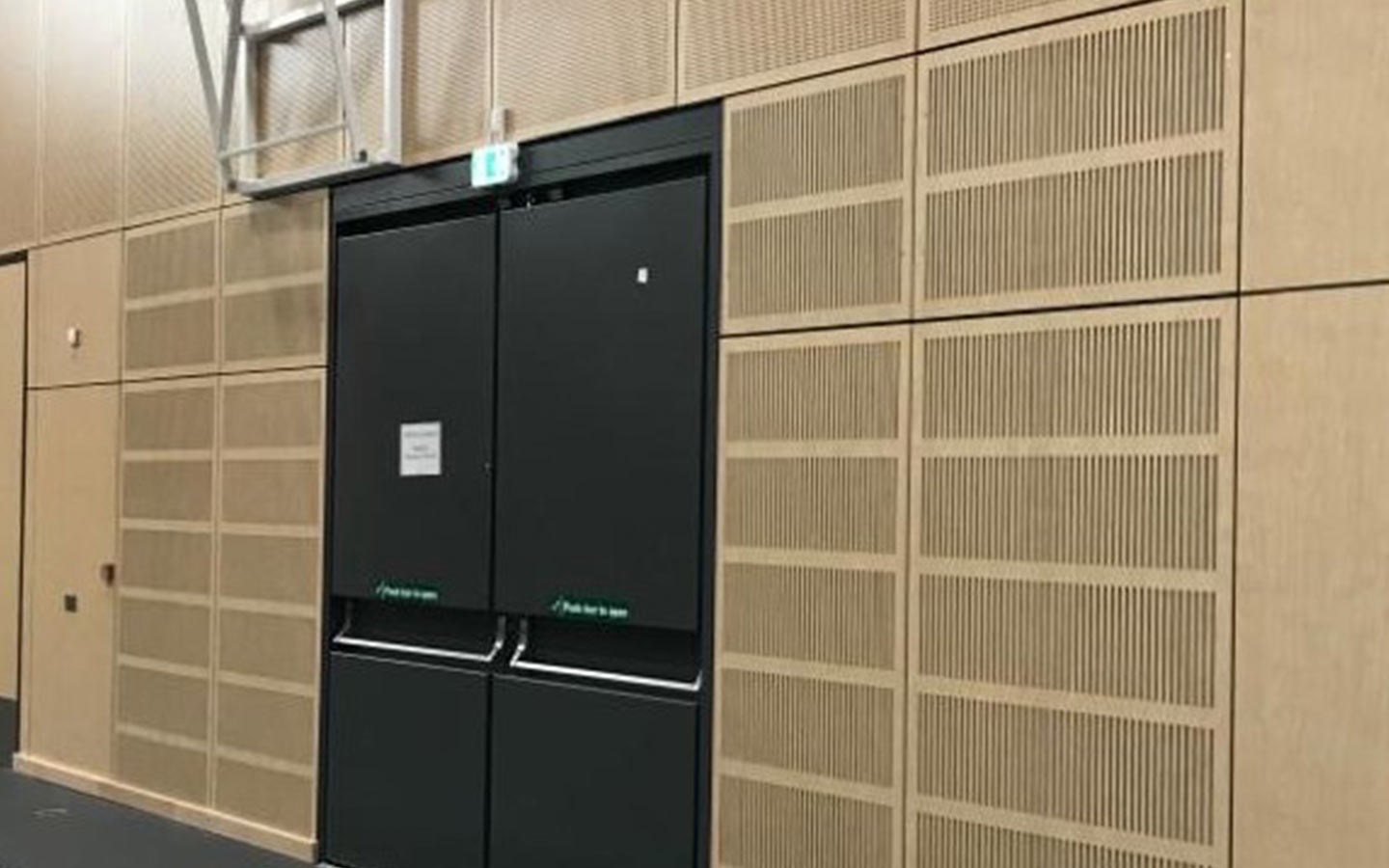

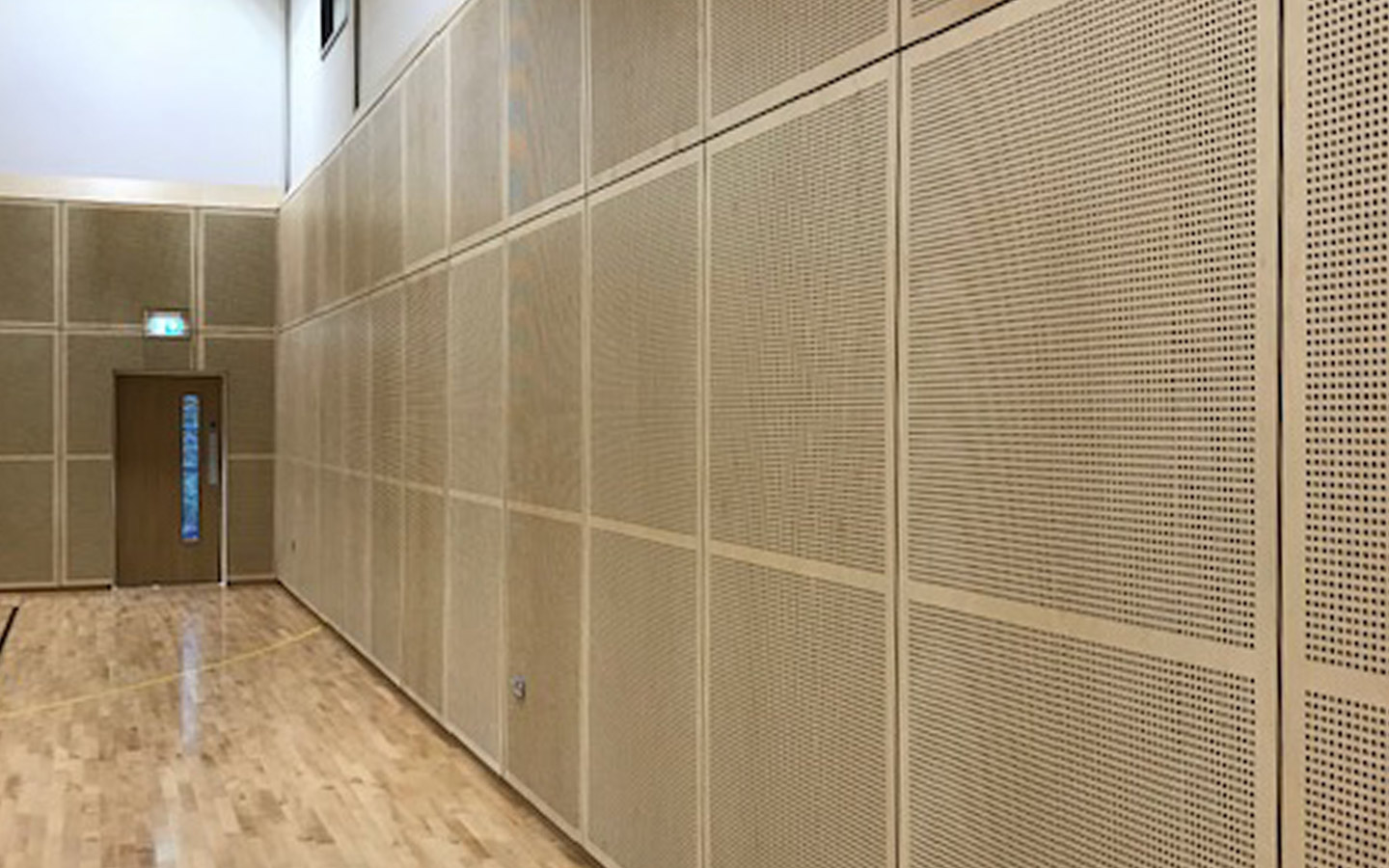

Gallery
Features

Standard Size Panels

Standard Configurations: 44mm w x 19mm d, 44mm w x 44mm d
3000mm x 1200mm / 2400mm x 1200mm / 1200mm x 1200mm

Perforations/Slots

6mm, 8mm, 10mm & 12mm or routed slots

Hole Centres

6mm, 32mm & 64mm (project specific size/patterns available)

Finishes

Birch Plywood, Veneers, CPL/HPL Laminates & Painted to std a RAL colour or to a Sport England colour

Fabric Backing

Black open weave/non-woven acoustically transparent backing

Panel Jointing

5-10mm between boards spliced with a black jointing strip.

Core Materials

FR Plywood or FR MDF

Acoustic Performance

Class C (50mm build-out)

Fire Resistance

Class 1 or Class 0 (Euro-Class B) SSF

Insulation

Rockwool RWA45 30mm deep high density mineral wool
45kgs/per M3 – Euro class A1 Fire Performance

Drawings

All drawings are subject to change.
